Pitch tester
After spending 25 hours parabolizing a 10" f/3.8 mirror, it finally dawned on me that my pitch might be too hard. Hard pitch won't conform to the steep parabola required of a fast mirror, so it's much more difficult to maintain contact and much more difficult to get consistent results. I had finally gotten a decent parabola, but only after a lot of frustration. So I decided to see if too-hard pitch was my problem.

Up until now I've been testing my pitch with a thumbnail. If it left a dent after a few seconds, I figured it was good enough. That's not much of a test, though, so I looked around for a standard test that would actually give me some numbers and let me compare my numbers with other people's. Turns out there's a great design for just such a testing apparatus in Jean Texerau's How to Make a Telescope. You have to get the second edition; it's not in the first. In the second, it's appendix J on page 393.

It's a pretty simple device. You need a point that's ground to a 14-degree angle, with a 1mm flat bottom. You need a framework that will support that point over a pitch sample. You need 1 kilogram of weight on that point. You need some way to measure the distance the point drops in five minutes. And you need a timer to measure five minutes.

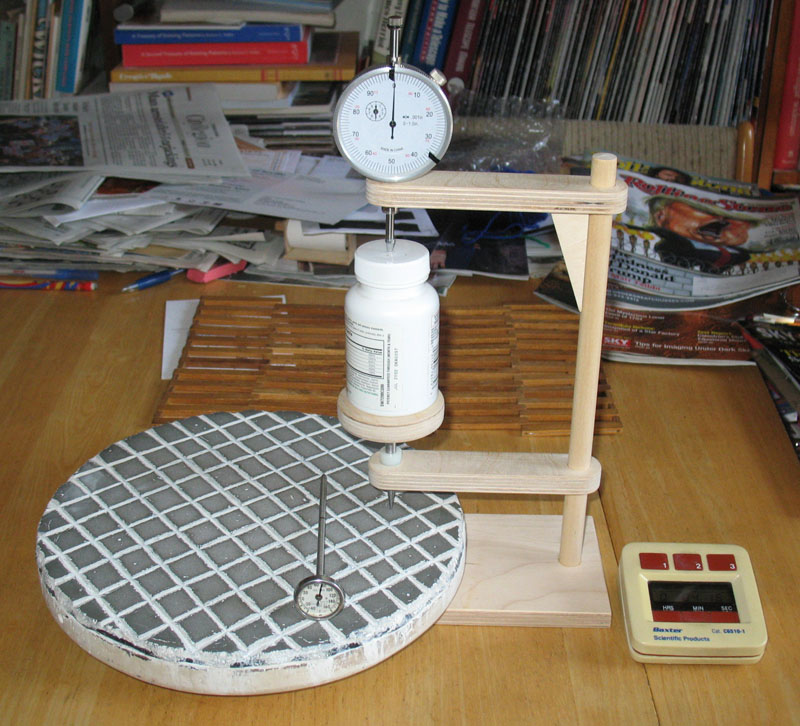

I bought a cheap dial indicator at Harbor Freight Tools and mounted it as you see here. The arm I mounted it on was too loose by itself, so I glued that triangular wedge to it so the wedge would rest against the dowel and the weight of the dial indicator would hold it snug. I discovered that the dial indicator's probe spring would lift the dial indicator upward if the spring was compressed too far, and that would spoil the measurement, so I have to use the lower half of the scale (from 0.0 to 0.5"). That's plenty of travel, though, so no worries.

The lower arm holds a nylon bushing, through which my 1/4" metal rod slides freely. I've driven the rod through a circular disk on which I place a bottle of lead shot. I rested the point of the tester on a scale and added shot until the combined weight of the point, disk, bottle, shot, and spring pressure of the dial indicator came to exactly 1 kilogram.

Pitch tester point
Here's a closeup of the point and the end of the arm it goes through. It's free to slide in that nylon bushing, so there's essentially no friction resisting its drop. The pitch is the only thing holding it back.

The angle here looks more like 17° than 14°, but that's an illusion of perspective. It's actually ground to 14 degrees, and the bottom is ground flat with a 1mm circular end.

This photo shows it after it has sunk into the pitch for a couple of minutes.

Dimple left by pitch tester point
After five minutes, this is the hole the tester made in my pitch tool. It fell 0.087" in five minutes' time.

Obviously, you'll need thick enough pitch that the tester won't bottom out in five minutes. You can't measure for 1 minute and multiply by five, either, because the rate of drop isn't linear. It slows down dramatically as the point moves deeper into the pitch.

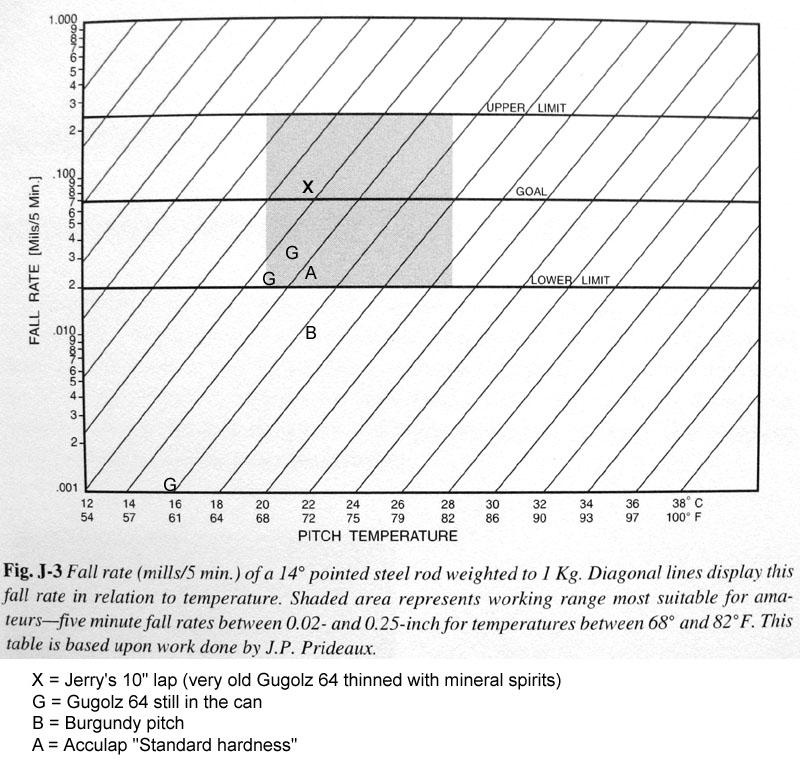

Pitch testing results chartI've plotted the results of several different pitch samples on the chart at left. The X is the pitch lap pictured above, which tests nearly ideal according to Texereau, but then he was basing his recommendations on f/6 to f/12 mirrors. At f/3.8, my pitch should have been way softer than this.

The other samples are Gugolz #64 still in the can at three different temperatures (G), Acculap "standard hardness" (A), and some ancient Burgundy pitch off an old lap (B).

The chart is a little difficult to figure out until you realize that the diagonal lines are there just to give you an idea of how any particular pitch will behave with temperature differences. For instance, if I tested the new Gugolz #64 at steadily increasing temperatures, the row of G's would stay in that diagonal bar as the results moved upward to the right. Note how at 60 degrees the Gugolz hardly flowed at all. Even a smidgen more drop would have put it in the same diagonal bar as the upper two measurements, so I think the diagonal bars are pretty accurate. And that 60° measurement illustrates one point very clearly: Don't try to polish a fast mirror (or any  mirror, really) in a cold shop!

That also leads to the complementary insight: if your pitch is too hard, you could warm up your work space and achieve the same thing as softening the pitch with turpentine or mineral spirits.

That's all I can think of for design notes. Feel free to email with questions if you have any.
